| Logic Entegreler | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name |
Product İmage
|
Power Options
|
Operating Voltage Range (V)
|
Input and I/O Pins |
Registers
|
Macrocells
|
tPD Min
|
Max Clock Freq
|
TempNo Range Range (deg C)
|
Packages
|
Order Now
|
|
|

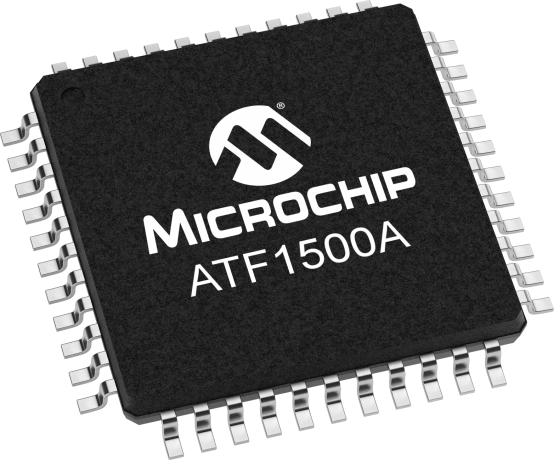

ATF1500A
|
 |
STANDARD | 4.5 to 5.5 | 36 |
32
|
32 | 10 | 125 |
-40 to 85
|
44/PLCC 44/TQFP
|
||
|
ATF1500AL
|
|
LOW | 4.5 to 5.5 | 36 |
32
|
32 |
20
|
91 |
-40 to 85
|
44/PLCC 44/TQFP | ||
|
ATF1502AS
|
|
STANDARD | 4.5 to 5.5 | 36 |
32
|
32 | 7 | 166 |
-40 to 85
|
44/PLCC 44/TQFP | ||
| ATF1502ASL | |
LOW
|
4.5 to 5.5 | 36 |
32
|
32 | 25 | 60 |
-40 to 85
|
44/PLCC 44/TQFP | ||
|
ATF1502ASV
|
|
STANDARD |
3 to 3.6
|
36 |
32
|
32 | 15 |
100
|
-40 to 85
|
44/PLCC 44/TQFP | ||
|
ATF1502BE
|
|
ULTRA-LOW |
1.8
|
44 |
32
|
32 |
5ns/7ns
|
44/TQFP | ||||
|

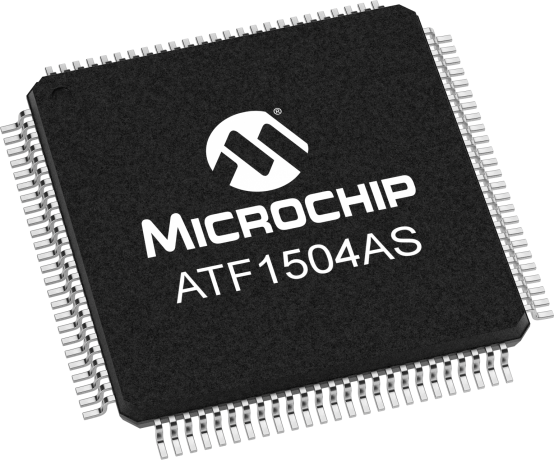

ATF1504AS
|
|
STANDARD | 4.5 to 5.5 | 68 | 64 | 64 | 7 | 166 |
-40 to 85
|
44/PLCC 84/PLCC 44/TQFP 100/TQFP
|
||
|

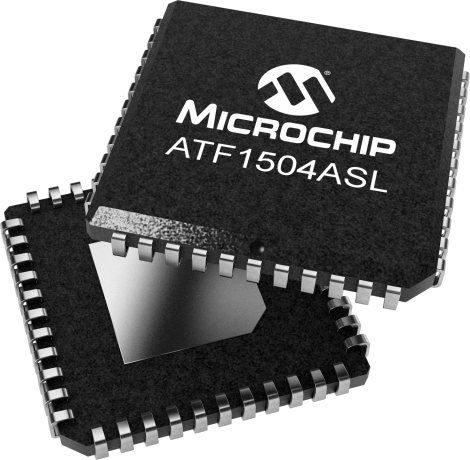

ATF1504ASL
|
|
LOW | 4.5 to 5.5 | 68 | 64 | 64 | 25 | 60 |
-40 to 85
|
44/PLCC 44/TQFP 100/TQFP
|
||
|
ATF1504ASV
|
|
STANDARD | 3 to 3.6 |
68
|
64 | 64 | 15 |
100
|
-40 to 85
|
44/PLCC 44/TQFP 100/TQFP | ||
|
ATF1504ASVL
|
|
LOW |
3 to 3.6
|
68
|
64 | 64 |
20
|
83
|
-40 to 85
|
44/PLCC 44/TQFP 100/TQFP
|
||
|
ATF1504BE
|
|
ULTRA-LOW
|
1.8
|
64
|
64 |
64
|
5ns/7ns
|
Please call for package information
|
||||
|
ATF1508AS
|
|
STANDARD
|
4.5 to 5.5
|
84
|
128 |
128
|
7
|
166
|
-40 to 85
|
84/PLCC 100/TQFP 100/PQFP
|
||
|
ATF1508ASL
|
|
LOW |
4.5 to 5.5
|
84
|
128 |
128
|
25
|
33
|
-40 to 85
|
84/PLCC 100/TQFP
|
||
|
ATF1508ASV
|
|
STANDARD
|
3 to 3.6
|
84
|
128
|
128
|
15 |
100
|
-40 to 85
|
84/PLCC 100/TQFP
|
||
|
ATF1508ASVL
|
|
LOW
|
3 to 3.6
|
84
|
128
|
128
|
20
|
83
|
-40 to 85
|
100/TQFP
|
||
|
ATF1508BE
|
|
ULTRA-LOW
|
1.8
|
100
|
128
|
128
|
5ns/7ns
|
Please call for package information
|
||||
|
ATF1508RE
|
|
ULTRA LOW POWER
|
3.3
|
100
|
128
|
128
|
5ns/7ns
|
100/TQFP
|
||||
| ATF16LV8C |
|
STANDARD
|
3 to 5.5
|
18
|
8
|
8
|
10
|
83
|
-40 to 85
|
20/TSSOP 20/PLCC
|
||
|
ATF16V8B
|
|
STANDARD
|
4.5 to 5.5
|
18
|
8
|
8
|
10
|
83
|
-40 to 85
|
20/PDIP 20/SOIC 300mil 20/PLCC
|
||
|
ATF16V8BQL
|
|
QUARTER, LOW
|
4.5 to 5.5
|
18
|
8 |
8
|
15
|
62
|
-40 to 85
|
20/PDIP 20/SOIC 300mil 20/PLCC
|
||
|
ATF16V8C
|
|
STANDARD
|
4.5 to 5.5
|
18
|
8 |
8
|
5 |
166
|
-40 to 85
|
20/PDIP 20/SOIC 300mil 20/PLCC
|
||
| ATF16V8CZ | |
ZERO |
4.5 to 5.5
|
18
|
8 |
8
|
15 |
62
|
-40 to 85
|
20/PDIP 20/SOIC 300mil 20/TSSOP 20/PLCC
|
||
|
ATF22LV10C
|
|
STANDARD |
3 to 5.5
|
22
|
10
|
10
|
10
|
83
|
-40 to 85
|
28/PLCC 24/SOIC 300mil 24/PDIP 24/TSSOP
|
||
|
ATF22LV10CQZ
|
|
QUARTER, ZERO
|
3 to 5.5
|
22 |
10
|
10
|
30
|
33 |
-40 to 85
|
28/PLCC 24/SOIC 300mil 24/PDIP 24/TSSOP
|
||
|
ATF22V10B
|
|
STANDARD |
4.5 to 5.5
|
22
|
10
|
10
|
15 | 83 |
-55 to 125
|
24/CERDIP 28/CLCC
|
||
|
ATF22V10C
|
|
STANDARD |
4.5 to 5.5
|
22
|
10
|
10
|
5 |
166
|
-55 to 125
|
28/PLCC 24/SOIC 300mil 24/CERDIP 28/CLCC 24/PDIP 24/TSSOP
|
||
|
ATF22V10CQ
|
|
QUARTER |
4.5 to 5.5
|
22 |
10
|
10
|
15 |
83
|
-40 to 85
|
28/PLCC
|
||
|
ATF22V10CQZ
|
|
QUARTER, ZERO |
4.5 to 5.5
|
22 |
10
|
10
|
20
|
50 |
-40 to 85
|
28/PLCC 24/SOIC 300mil 24/PDIP 24/TSSOP
|
||
|
ATF2500C
|
|
STANDARD |
4.5 to 5.5
|
38 |
48
|
24
|
15 |
83
|
-55 to 125 |
40/PDIP 44/PLCC 44/JLCC
|
||
|
ATF750C
|
|
STANDARD |
4.5 to 5.5
|
22 |
20
|
10
|
7
|
142
|
-55 to 125
|
28/PLCC 24/SOIC 300mil 24/PDIP 24/TSSOP
|
||
|
ATF750CL
|
|
LOW |
4.5 to 5.5
|
22
|
20
|
10
|
15
|
71
|
-40 to 85
|
28/PLCC 24/SOIC 300mil 24/PDIP 24/TSSOP
|
||
|
ATF750LVC
|
|
STANDARD
|
3 to 5.5
|
22
|
20 | 10 |
15
|
90 |
-40 to 85
|
28/PLCC 24/SOIC 300mil 24/PDIP 24/TSSOP | ||
